Description

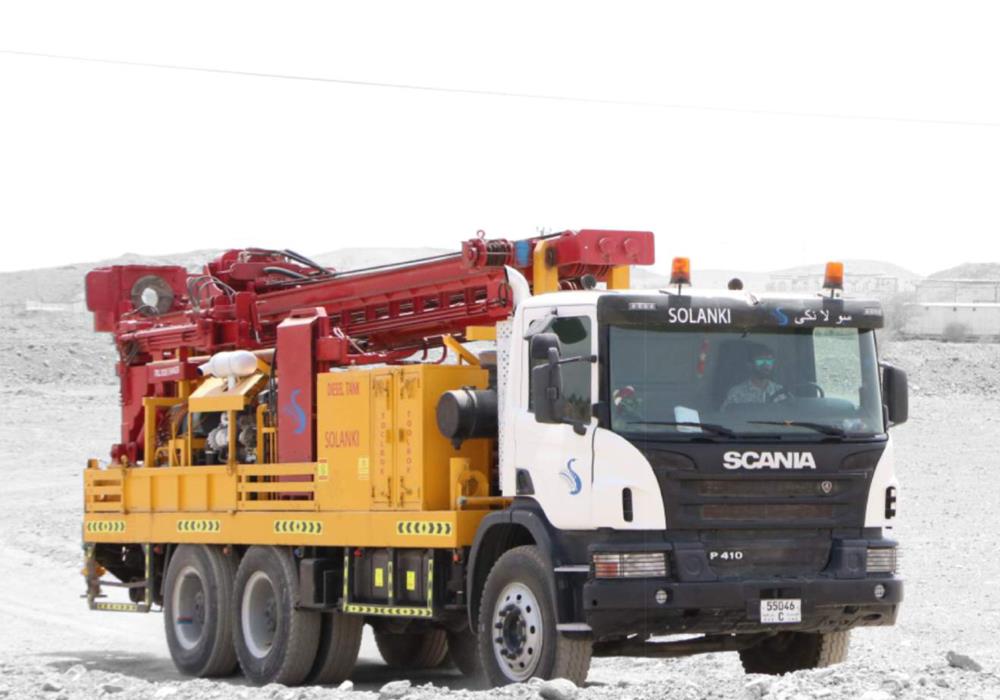

Regular Premium Model
Truck 1 with Compressor and Fuel Tank
Truck 2 with Hydraulic System + Compressor + Auto Rod Changer.
| Hole Diameter | 6 to 14 Inches |
| DTH Drilling Depth | 600 Mtr. |
| Deck Engine | 218 HP Ashok Leyland |
| Truck | Ashok Leyland 2825 BS6 4 x 4 Company Cab, 9-Speed Gear Box |
| Hyd, System Pressure | Maximum Working Pressure 3000 Psi |
| Rod Lifter | Fully Automatic Updated Technology Hydraulic Rod Lifter |
| Work Method | Water well Drilling Rig, DTH Cum Roatry |
| Drilling Tower | Box Type Structure |
| Max Capacity – 22 Ton | |
| Rod Handing Capacity 6 Mtr. (15 Ft.) & (20 Ft.) |
| Roatryhead | Roatryhead Powered by Two Orbital Hydraulic Motor |
| Max Speed 0-120 RPM | |
| Feed Cylinder | 200 MM Hydraulic Cylinder with wire rope Combination |
| Leveling Jack | 140 mm Four Hyrdraulic Jack Open Type |
| Drilling Tower Length | Customer Choice |
| Pull up Force | 22000 Kgf |
| Pull Down Force | 14000 Kgf |
| Machine Length | Customer Choice |
| Machine Width | Customer Choice |
